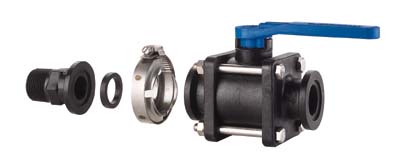

Flange Ball Valves / Fittings

Features

• Quick and easy assembly. No pipe or sealant necessary.
• Positive seals.
• Easy on/off hose connections.
• 360 degree orientation.
• Valves and fittings are manufactured from glass re-inforced polypropylene for strength and durability -- will never rust or corrode.

Recommended Operating Pressure for Valves:

• 100 PSI @ 0°F
• 125 PSI @ 70°F
• 70 PSI @ 150°F

Valves

• Self-aligning ball rotates freely against Teflon seats.
• Unique body-to-flange design allows for low torque on/off operation.
• Viton O-ring stem seal and O-ring body seal.
• Available with blue Norwesco handle or blank yellow handle.
• Pressure rated at 125 PSI @ 70° F.
• All valves tested by air pressure under water.

Stainless Steel Worm Screw Hose Clamps For Flange Fittings
Description	Part Number
1"	62932
2"	62933
3"	62934

EPDM Flange GasketFor Flange Fittings
Description	Part Number
1"	62935
2"	61574
3"	61575

Recommended Operating Pressure for Fittings:

• 120 PSI @ 0°F
• 150 PSI @ 70°F
• 90 PSI @ 150°F
